| DEC1625 | Output Power 輸出功率: 0.1W~4.0W | Weight重量: 23g (Approx.) |
Brushless DC Motor-Typical Application 直流無刷電機-典型應用 Home Application: White Goods, Small Appliance, Kitchen Appliance, Smart Home, Micro Actuate家用電器：白色家電，小家電，廚房電器，智能家居，微型致動器 Automobile Parts: Micro Pump, Switcher 汽車部件：微型泵，切換器 Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump 醫療器械：醫療泵，液泵、氣泵 Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter 電動工具：微型泵，微型閥門，儀器儀表 Business Equipment: Printer, Copier, Projector, Scanner, Cash Register 商業設備：打印機，復印機，投影機，掃描儀，點鈔機 Personal Care: Skin Care, Beauty Apparatus 個人護理：皮膚護理、美容器材 | |||
Model 型號 | 電壓 Voltage(V) | No Load 空載 | Rated Load 額定負載 | Stall 堵轉 | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
DEC1625-S01 | 2-5 | 3.7 | 7500 | 0.145 | 0.687 | 5569 | 0.297 | 0.40 | 2.44 | 0.35 |
DEC1625-S02 | 5-13 | 6 | 7800 | 0.050 | 0.687 | 6500 | 0.150 | 0.46 | 4.17 | 0.9 |
DEC1625-S03 | 5-13 | 12 | 7850 | 0.034 | 0.687 | 6570 | 0.080 | 0.475 | 4.26 | 0.8 |
DEC1625-S04 | 5-13 | 12 | 49265 | 0.314 | 0.687 | 47462 | 0.538 | 3.413 | 18.76 | 0.8 |
DEC1625-S05 | 5-13 | 6 | 9995 | 0.082 | 1.001 | 8045 | 0.261 | 0.843 | 5.087 | 0.9 |
DEC1625-S06 | 5-13 | 12 | 26600 | 0.118 | 1.501 | 22565 | 0.415 | 3.547 | 9.895 | 0.8 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs 特征：雙轉向，信號功能，鎖定保護，無極調速，低噪音，低電磁干擾，超長壽命3000-30000小時
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |

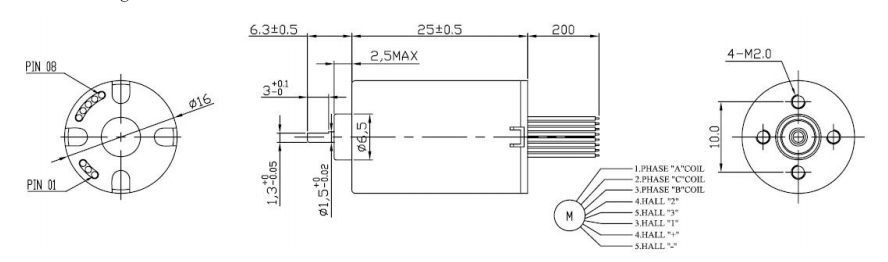

Outline Drawing 外形圖:
Usable machine screw length 1.5mm max. from motor mounting surface | Unit: Millimeter |

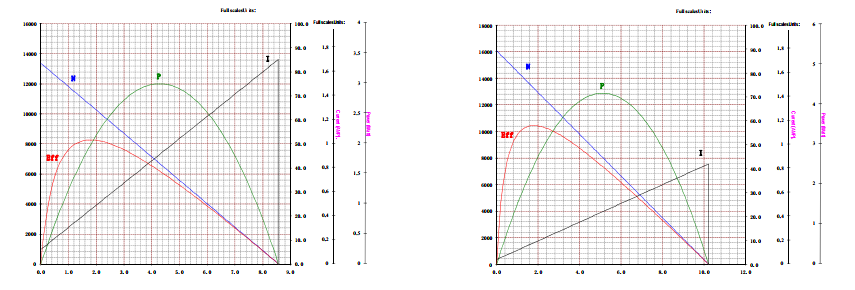

Performance Curve 性能曲線:
DEC1625-S02 6V | DEC1625-S04 12V |
